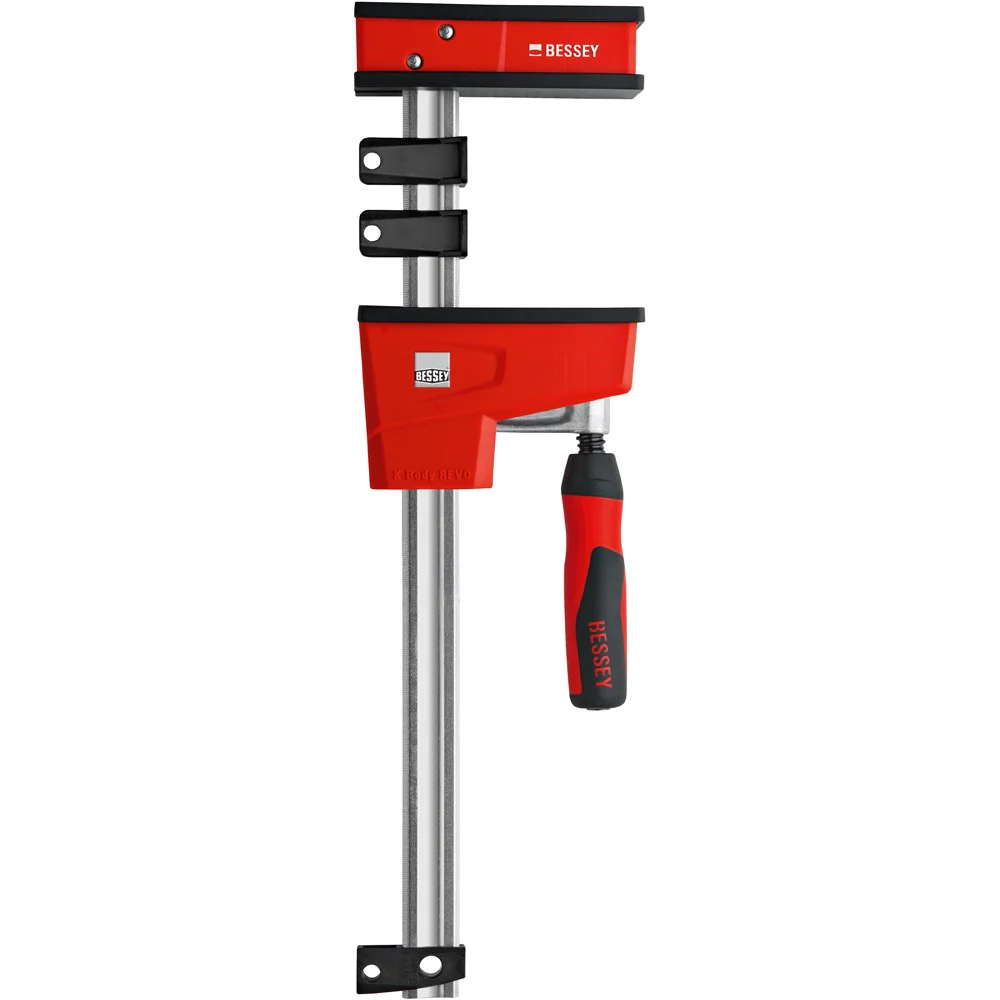

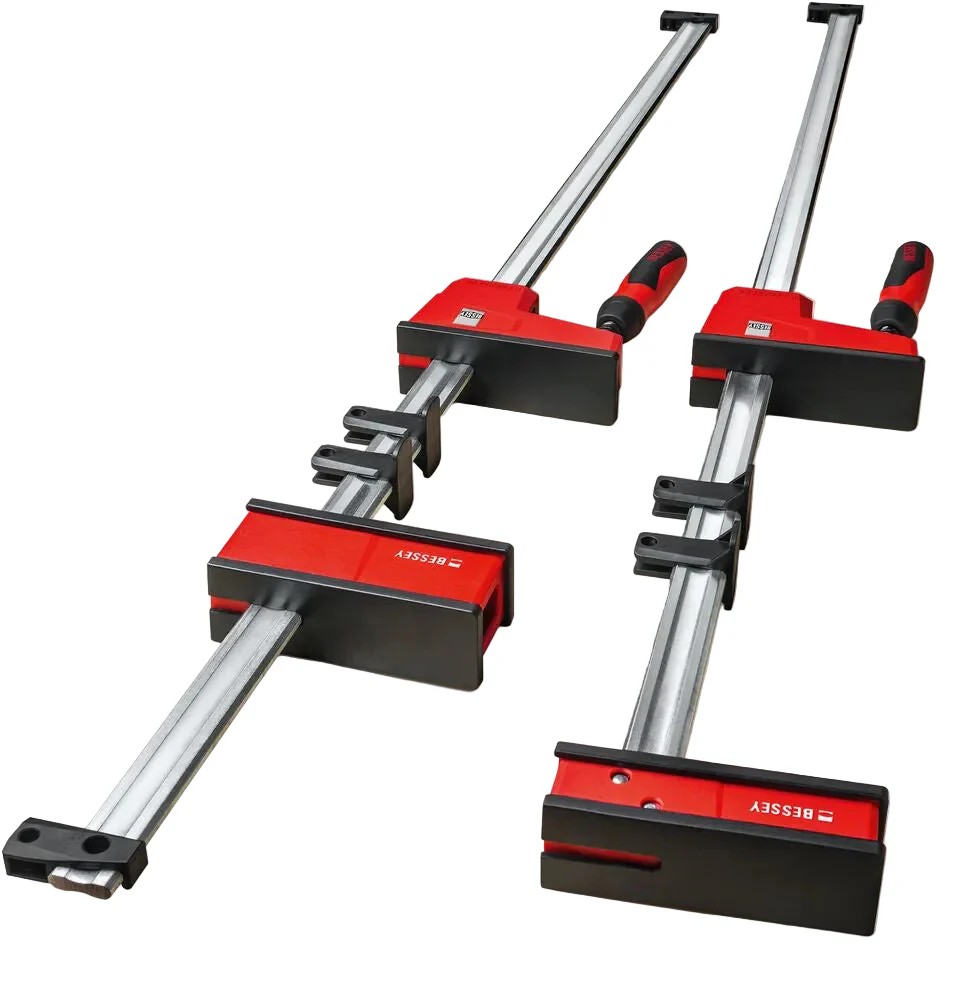

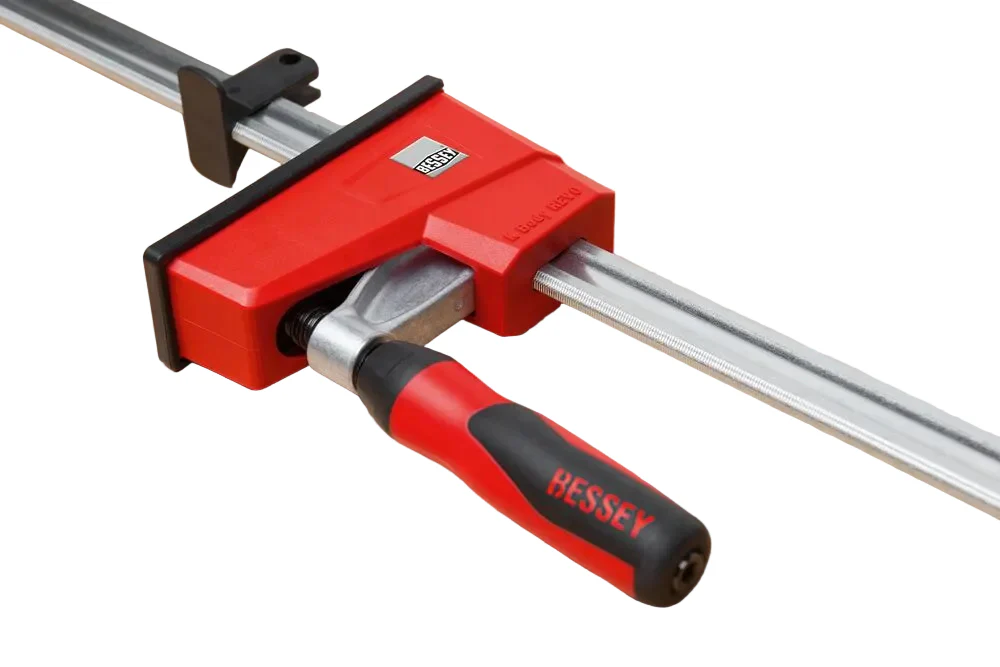

Bessey K Body REVO Parallel Clamp
High-pressure parallel clamping with precision alignment for demanding woodworking applications.
The Bessey KRE REVO Parallel Clamp is engineered for precise, controlled clamping of delicate and demanding workpieces. Designed to keep surfaces perfectly parallel during glue-ups and assembly, it delivers exceptional clamping performance while protecting sensitive materials from damage.
Large parallel clamping surfaces sit square to the rail, allowing even pressure distribution across panels, frames, cabinets and assemblies. The included removable pressure caps are resistant to glue, paint and grease solvents, helping maintain clean clamping surfaces during workshop use.
Built for strength and reliability, the KRE REVO delivers up to 8,000 N of clamping force through a metal-reinforced housing and optimised sliding arm system with double slip protection. This prevents accidental movement and ensures the clamp maintains consistent pressure throughout use.
The integrated workpiece supports keep timber elevated from the rail to reduce surface contact, while the ergonomic two-component handle allows controlled tightening with minimal effort.
Key Features
- Up to 8,000 N clamping force for demanding glue-ups and assemblies
- Large parallel jaws provide accurate, even pressure distribution
- Removable pressure caps resist glue, paint and grease solvents

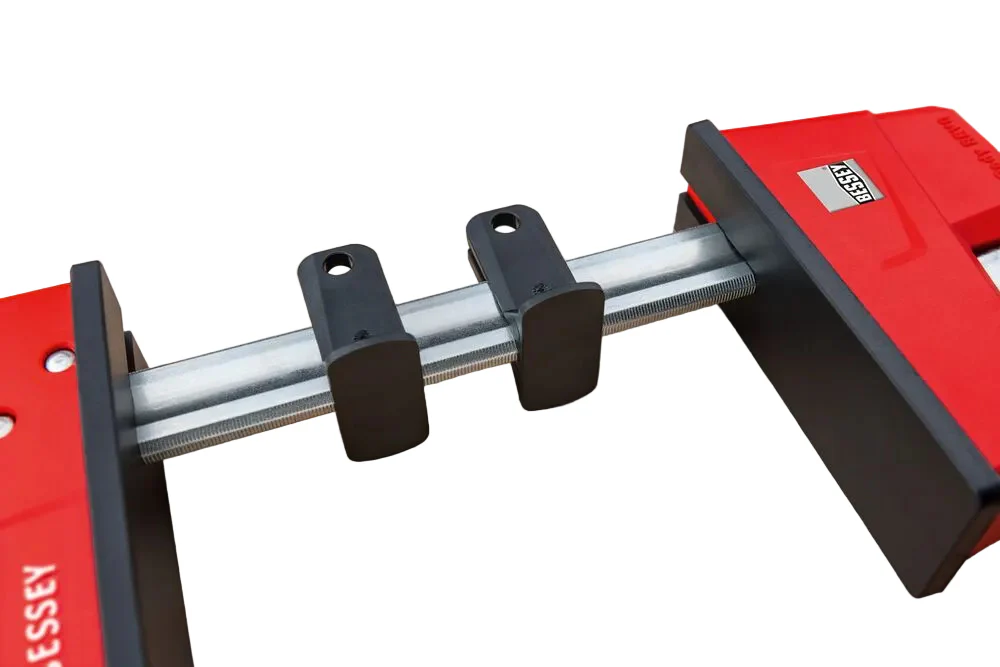

- Workpiece supports prevent contact with the rail surface
- Metal-reinforced housing for strength and durability
- Double slip protection prevents unintentional jaw movement

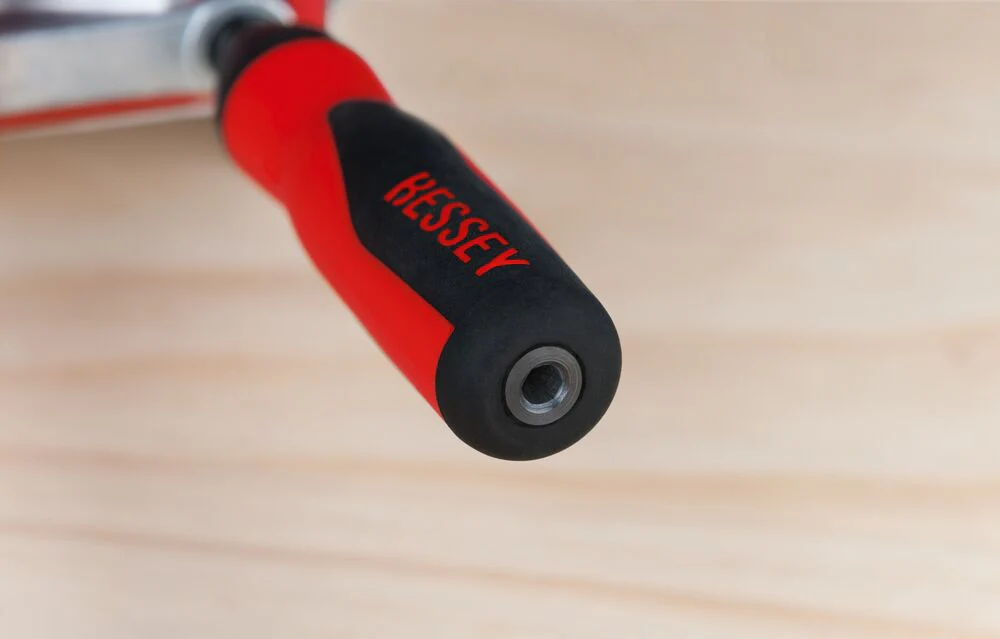

- Ergonomic two-component handle for comfortable tightening
- Suitable for clamping, spreading and assembly applications
- Compatible with a wide range of optional accessories
Ideal Applications
- Cabinet and furniture assembly
- Panel glue-ups and laminations
- Clamping delicate or finished surfaces
- Frame and box construction
- Precision woodworking and joinery
Available Sizes
Model |
Opening Capacity |
Throat Depth |
Spreading Width |
|---|---|---|---|
| KRE30-2K | 300mm | 95mm | 255–390mm |
| KRE60-2K | 600mm | 95mm | 255–730mm |
| KRE80-2K | 800mm | 95mm | 255–930mm |
| KRE100-2K | 1000mm | 95mm | 255–1130mm |
| KRE125-2K | 1250mm | 95mm | 255–1355mm |
| KRE150-2K | 1500mm | 95mm | 255–1610mm |
| KRE200-2K | 2000mm | 95mm | 255–2080mm |
| KRE250-2K | 2500mm | 95mm | 255–2580mm |
Â
Designed for precise alignment, strong clamping pressure and dependable performance across professional woodworking applications.
Original: $79.74
-65%$79.74
$27.91
Description
High-pressure parallel clamping with precision alignment for demanding woodworking applications.
The Bessey KRE REVO Parallel Clamp is engineered for precise, controlled clamping of delicate and demanding workpieces. Designed to keep surfaces perfectly parallel during glue-ups and assembly, it delivers exceptional clamping performance while protecting sensitive materials from damage.
Large parallel clamping surfaces sit square to the rail, allowing even pressure distribution across panels, frames, cabinets and assemblies. The included removable pressure caps are resistant to glue, paint and grease solvents, helping maintain clean clamping surfaces during workshop use.
Built for strength and reliability, the KRE REVO delivers up to 8,000 N of clamping force through a metal-reinforced housing and optimised sliding arm system with double slip protection. This prevents accidental movement and ensures the clamp maintains consistent pressure throughout use.
The integrated workpiece supports keep timber elevated from the rail to reduce surface contact, while the ergonomic two-component handle allows controlled tightening with minimal effort.
Key Features
- Up to 8,000 N clamping force for demanding glue-ups and assemblies
- Large parallel jaws provide accurate, even pressure distribution
- Removable pressure caps resist glue, paint and grease solvents
- Workpiece supports prevent contact with the rail surface
- Metal-reinforced housing for strength and durability
- Double slip protection prevents unintentional jaw movement
- Ergonomic two-component handle for comfortable tightening
- Suitable for clamping, spreading and assembly applications
- Compatible with a wide range of optional accessories
Ideal Applications
- Cabinet and furniture assembly
- Panel glue-ups and laminations
- Clamping delicate or finished surfaces
- Frame and box construction
- Precision woodworking and joinery
Available Sizes
Model |
Opening Capacity |
Throat Depth |
Spreading Width |
|---|---|---|---|
| KRE30-2K | 300mm | 95mm | 255–390mm |
| KRE60-2K | 600mm | 95mm | 255–730mm |
| KRE80-2K | 800mm | 95mm | 255–930mm |
| KRE100-2K | 1000mm | 95mm | 255–1130mm |
| KRE125-2K | 1250mm | 95mm | 255–1355mm |
| KRE150-2K | 1500mm | 95mm | 255–1610mm |
| KRE200-2K | 2000mm | 95mm | 255–2080mm |
| KRE250-2K | 2500mm | 95mm | 255–2580mm |
Â
Designed for precise alignment, strong clamping pressure and dependable performance across professional woodworking applications.
